4G GPS WIFI AI ADAS DMS BSD Dashcam Recorder MDVR System for Fleet Management
商品の詳細:
| 起源の場所: | 深セン、中国 |
| ブランド名: | Vanwin Tracking |
| 証明: | CE/FCC/RoHS |
| モデル番号: | VW-DVR08AI |
| ドキュメント: | news-T5504 V2 English manua... -.pdf |
お支払配送条件:
| 最小注文数量: | 1PC |
|---|---|
| 価格: | negotiated |
| パッケージの詳細: | デフォルトではニュートラルカートンボックスパッケージ。注文が300個に達した場合、カスタマイズパッケージが利用可能です。カスタマイズロゴ印刷は100個以上からご注文いただけます。 |
| 受渡し時間: | サンプルの場合は2〜3日、大量注文の場合は15〜30日 |
| 支払条件: | T/TまたはWestern UnionまたはPayPal |
| 供給の能力: | 1か月あたり5,000pcs |
|
詳細情報 |
|||
| ビデオフォーマット: | H.264 | 解決: | 1080p、720p |
|---|---|---|---|
| 視野角: | 120度 | ストレージ容量: | 最大。 256GB |
| 入力電圧: | DC：+10V～+36V | 消費電力: | < 5W (外部機器なし) |
| ハイライト: | ADAS DMS BSD Dashcam Recorder,4G GPS WIFI Dashcam Recorder,Fleet Management Dashcam Recorder |
||
製品の説明
4G GPS WIFI AI ADAS DMS BSD Dashcam Recorder MDVR System
Product Overview

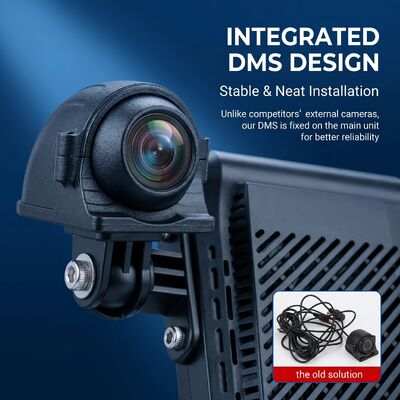

This compact, all-in-one vehicle recording solution replaces traditional in-vehicle DVRs. It combines a built-in 1080p camera (ADAS) and a built-in DSM camera, plus supports two external HD cameras - making it a flexible 4-channel system (1-CH 1080p @25fps + 3-CH 720p @25fps).
Technical Specifications
| Component | Specifications |
|---|---|
| CPU | Dual-Core processor@1.5GHz, Total coding resources 1080p*100fps NPU@1.0TOPS neural network acceleration engine |
| Memory | 2Gb DDR3 |
| Video Input | Active Pixels: 1920×1080, 1080×720; H.264 & H.265 format 2-ch Built-in CMOS camera, Low illumination 0.01LUX 2-ch External camera, AHD 720P@25fps |
| Video Output | Not support, Support mobile APP preview and setting |
| Audio Input/Output | Built-in MIC and speaker, G.711a format |
| Video Recording Resolution | 1080P/720P/D1*25fps, Simultaneous recording of sound and video |
| G-Sensor | Built-in 3-axis acceleration |
| External Interface | 2-ch RS232, reserved for communication with peripherals |
| Alarm Input | 2-ch sensor input |
| Positioning Module | Built-in GPS / Beidou Positioning Module |
| 4G | Built-in 4G module, TDD-LTE, FDD-LTE |
| WIFI | Built-in, 2.4G, 802.11b/g/n, STA or AP mode |
| TF Card | Support 1 TF card, Support 16G/32G/64G/128G/256GB/512GB |
| USB | Micro USB interface |
| Upgrade | TF card and OTA |
| AI - ADAS | Lane departure, collision alarm, Distance detection, pedestrian detection etc |
| AI - DSM | Fatigue driving detection, Smoking, call mobile phone, Occlusion, Unsafe driving behavior habit detection |
| AI - BSD | Blind area detection |
| Input Voltage | DC: +10V ～ +36V |
| Power Consumption | Normal working state ＜ 5W (without external equipment) |
| Power Off Protection | Super capacitor design, support abnormal power failure, ensure the integrity of video files |
| Working Temperature | -25℃ to +70℃ |
| Working Relative Temperature | 20% to 80% |
| Equipment Size | 138mm × 85mm × 45mm |
| Net Weight | 0.4kg |

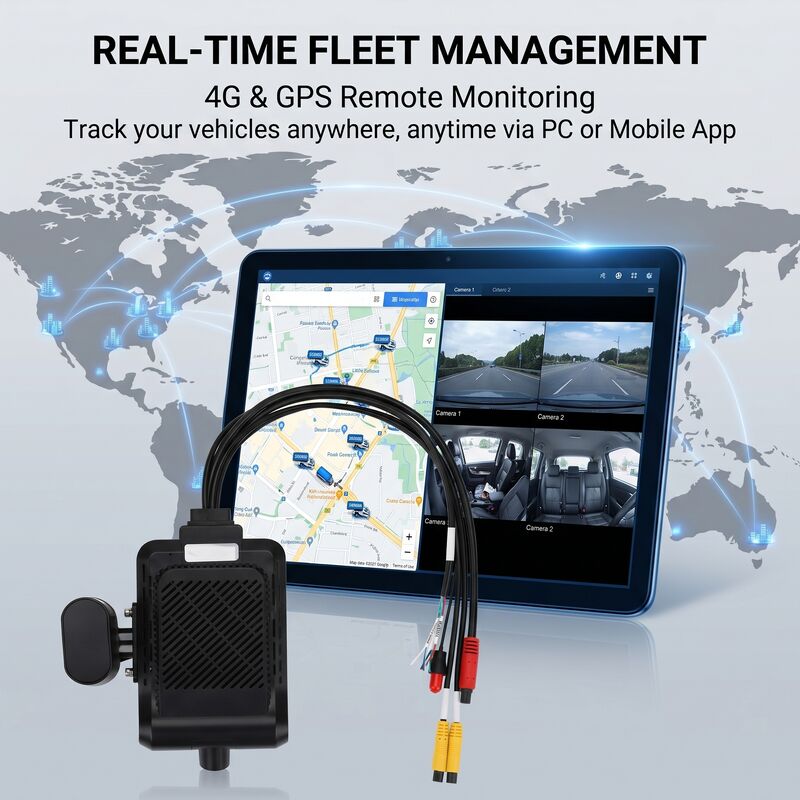

Product Images
Frequently Asked Questions
Do you provide the free CMS?
Yes, is free of charge. We will provide you the authorized code after you buy our equipment.
What is the minimum requirement to run this software?
CPU 2.5G four core; Memory 8GB; HDD 1TB;
After we build our own server, can the IP of units be changed remotely?
Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are very pleased to help you.
