3D Ultra HD 1080P 360° Bird's Eye View Camera, Car Truck Panoramic Surround View Parking System with Reverse Safety Prompt
商品の詳細:
| 起源の場所: | 深セン、中国 |
| ブランド名: | Vanwin Tracking |
| 証明: | CE/FCC/RoHS |
| モデル番号: | VW360 |
お支払配送条件:
| 最小注文数量: | 10個 |
|---|---|
| 価格: | negotiated |
| パッケージの詳細: | デフォルトで中立紙箱のパッケージ |
| 受渡し時間: | サンプルには1~2日,大注文には3~10日 |
| 支払条件: | ウェスタンユニオン、T/T、ペイパル |
| 供給の能力: | 1ヶ月あたりの5,000pcs; |
|
詳細情報 |
|||
| タイプ: | 3D 360 度ラウンド ビュー システム | レンズ角度: | 360 度視野 |
|---|---|---|---|
| テレビシステム: | PAL または NTSC | 電圧: | DC 12V-24V |
| 車種: | ユニバーサル,どんな車にも | 防水: | IP69K |
| 保証: | 18ヶ月 | 特徴: | 安全な駐車場 |
| ハイライト: | 360° bird's eye view car camera,3D ultra HD parking system,panoramic surround view with reverse prompt |
||
製品の説明
3D Ultra HD 1080P 360° Bird's Eye View Camera, Car Truck Panoramic Surround View Parking System with Reverse Safety Prompt
Challenge: Excessive blind spots lead to safety risks (scratches, collisions)
Solution: 360° around view system covers all blind spots, ensuring safety
Challenge: Reversing/parking is difficult; narrow roads increase accident risks
Solution: Assists in reversing, parking and narrow road turning with clear guidance
Challenge: Blurry camera quality and narrow view affect key detail recognition

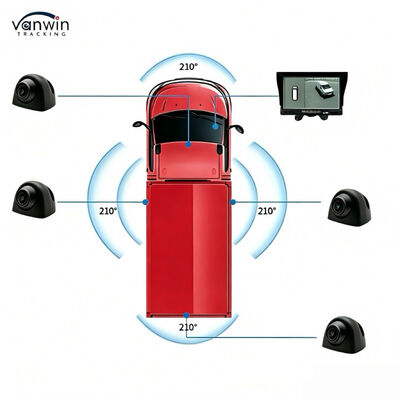

Solution: 4-channel 1080P 190° wide-angle fisheye cameras, HD output
Challenge: Poor vehicle adaptability and complex installation increase costs
Solution: Suitable for ≤22ft vehicles; simple installation, customizable
Challenge: No image retention, lacking accident evidence
Solution: 32GB storage + cycle recording, retaining HD video as evidence
Challenge: Failure to meet customization, bulk purchase and OEM/ODM needs
Solution: OEM/ODM services available; contact our team for details
| Project | Specifications |
|---|---|
| Camera Sensor Size | 1/3" Color sensor |
| Signal to Noise Ratio | >60dB |
| Minimum Illumination | 0.001LUX |
| Dynamic Range | 82dB |
| Video Output | AHD720P/1080P |
| Waterproof Level | IP69K |
| Perspective | Vertical 130°, Level 180°-230° |
| Working Voltage | 3.5-5.5V |
| Working Current | About 140mA |
| Host CPU | RK3566 1.8GHz |
| ROM | DDR3 4Gb |
| RAM | 512MB |
| Operating Voltage Range | 8~16V |
| Working Current | <500mA |
| Standby Current | <5mA |
| Operating Temperature Range | -20℃〜75℃ |
| Storage Temperature Range | -30℃〜80℃ |
| Operating Humidity Range | 40%〜80% |
| Start Time | <7S |

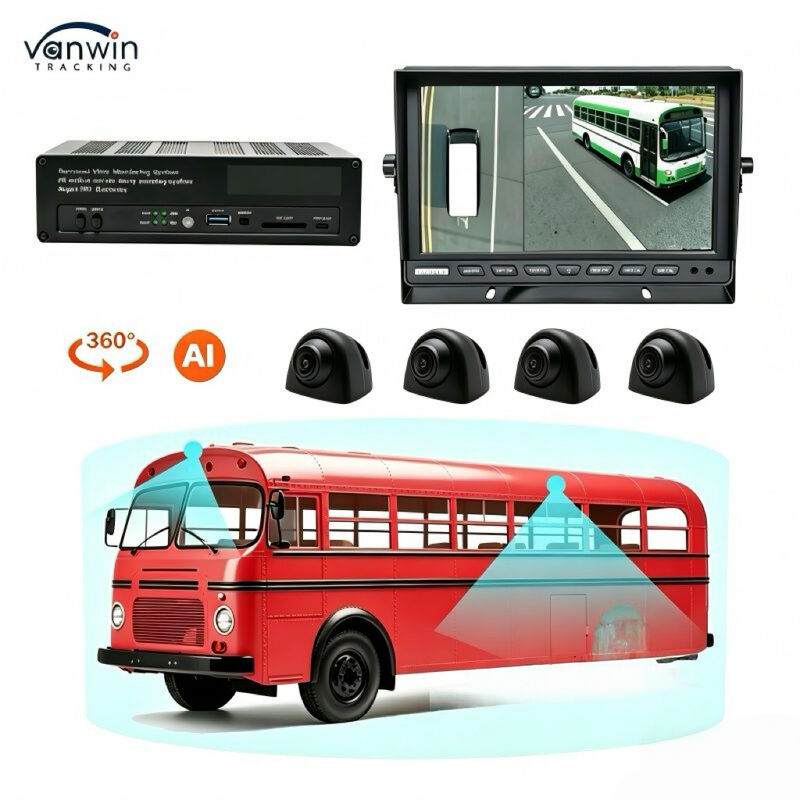

360 Full View Parking Visual System works in buses, trucks, trains, forklifts, and other vehicles for comprehensive security video surveillance.
Make drivers safe, make vehicles safe, make passengers safe, make thousands of families safe. Make the roads a safer place by providing our drivers with the highest quality & most personalized safety solutions!
