AI MDVR 360 Degree Surround View Blind Spot Detection and Accident Liability Traceability for Heavy Duty Vehicles
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Vanwin |
| 証明: | CE/FCC/RoHS |
| モデル番号: | VW-360-1 |
お支払配送条件:
| 最小注文数量: | 5pcs |
|---|---|
| 価格: | Negotiated |
| パッケージの詳細: | デフォルトで中立カートンボックスパッケージ。注文が300 PCに届く場合は、カスタマイズパッケージを利用できます。カスタマイズロゴ印刷は、100個以上の注文で利用できます。 |
| 受渡し時間: | サンプルの場合は2〜3日、バルク注文では15〜30日 |
| 支払条件: | T/T、Western Union、PayPal |
| 供給の能力: | 1ヶ月あたりの50,000pcs |
|
詳細情報 |
|||
| 動作温度: | -20°C〜70°C | 圧縮形式: | H.264/H.265 |
|---|---|---|---|
| ワイヤレス接続: | 4G/3G/Wi-Fi | 色: | 黒 |
| 入力チャネル: | 4/8チャンネル | 特徴: | AI、GPS、MDVR、4G、8チャネル、オイルセンシング |
| 電圧出力: | +12V@2.5A+,5V@2A | 電源入力: | 9-36V DC |
| 消費: | 通常の作業<14W、スタンバイ<0.5W | 保証: | 18ヶ月 |
| ハイライト: | AI MDVR blind spot detection,360 degree surround view MDVR,heavy duty vehicle accident traceability |
||
製品の説明

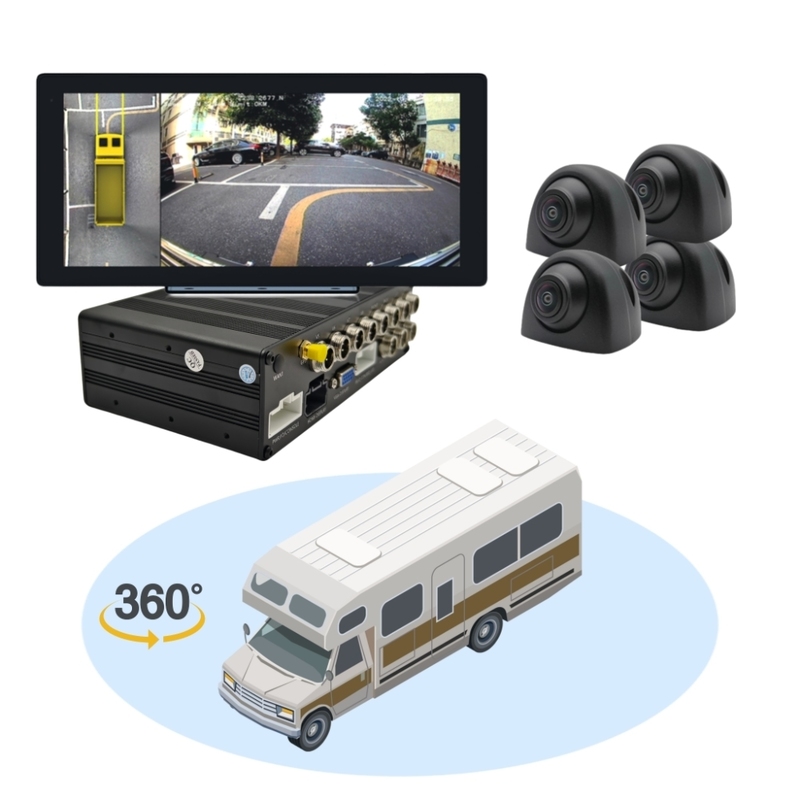

360 Degree Surround View 3D Heavy Duty Truck Camera System AI Blind Spot Detection for Truck Bus RV Car Reversing Aid
Market demand points: Construction machinery equipment vehicles, agricultural machinery equipment vehicles, municipal sanitation sweeping vehicles, etc. have the characteristics of wide and long vehicle bodies and high driving positions. There is a large blind spot for driving visual safety around the vehicle. The single-camera multi-frame rearview mirror system cannot meet the requirements of multiple monitoring areas.

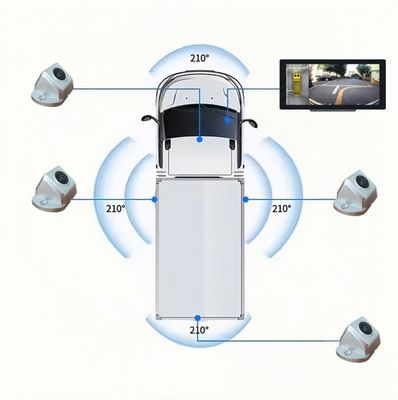

1. Eliminate blind spots: The system uses four fisheye cameras on the front, rear, left and right of the vehicle to capture images. Through fisheye correction and image stitching technology, a 360-degree panoramic overhead view is generated, which is displayed in real time to show the distribution of obstacles around the vehicle, effectively avoiding collision risks during turns, reverse parking, and parking.
2. Adaptability to harsh environments: Equipped with extremely strong anti-shake and night vision functions. The hardware is reinforced with anti-vibration treatment to ensure stable and clear images during mobile operations; supports 30FPS high frame rate recording, and can still provide high-quality images in low-light or nighttime conditions.
3. Accident Liability Traceability: The time watermark function precisely records the video shooting time down to the second level. Combined with the four-channel simultaneous recording and quick search functions, it enables quick identification of the accident period's footage, providing objective evidence for liability determination.
4. Automated operation mechanism: The vehicle automatically starts when ignition is activated and automatically shuts down when ignition is turned off, without the need for manual intervention; installation is convenient and does not occupy the interior space, and it is compatible with various vehicle models.
5. Multi-scenario function integration: It combines both driving record and parking assistance functions. The USB interface supports rapid backup of video data and can be played for evidence on a computer; some systems also support 8-channel high-definition video input and synchronous recording, meeting the monitoring needs in complex scenarios.

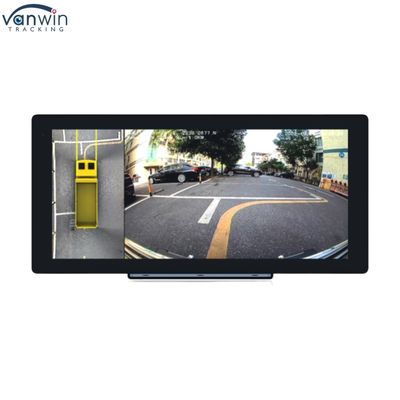

6. Humanized interaction design: Real-time display of panoramic images on the central control screen, support for searching videos by date and time, simplified operation process, and enhanced driving concentration.
We are a one-stop provider of vehicle-mounted monitoring systems dedicated to addressing vehicle safety, with fifteen years of professional experience. Our products comprehensively cover vehicle recorders, monitors, vehicle cameras, dash cams, and various expansion devices like fuel sensors, temperature sensors, fireproof boxes, alarms, tire pressure sensors and so on.
We have provided customized solutions for hundreds of different customers in various application scenarios around the world, earning unanimous praise from our clients. We always uphold a sincere, kind, and enthusiastic service attitude, considering all aspects for our customers and bringing them value far beyond the products themselves.
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a certified manufacturer with integrated operations encompassing R&D, industrial design, production, global sales distribution, and dedicated after-sales service centers.
Q2: Do you offer technical support services?
A: Our technical team provides comprehensive support throughout the product lifecycle, including: * Pre-sales consultation & solution design * On-site installation guidance (optional) * Post-purchase troubleshooting & optimization * Regular firmware updates
Q3: Which control platform do you use? Is there additional licensing cost?
A: Our proprietary CMSV6 platform features:
✓ Free perpetual license with device purchase
✓ Cloud-based remote management capabilities
✓ Multi-layer cybersecurity certification
Note: Activation code will be provisioned upon equipment delivery.
Q4: How to obtain competitive pricing?
A: We offer flexible commercial terms:
• Volume discounts for orders exceeding 50 units
• Customized quotations for OEM/ODM projects
• Long-term partnership incentives
Pro Tip: Submit your technical specifications and annual procurement plan for optimized pricing.
